T Box – The award-winning transport solution
A maximum of robustness, load capacity, practical handling and comfort – these were the requirements for the bwh’s own development department for the concept of the T Boxes. The result is a new transport case series, whose quality and reliability are unique in the industry.
T Box
The T Box, available in three different sizes, has outstanding features and a distinctive design, registered for design protection, which guarantees high torsional rigidity by ribbing the sturdy HDPE plastic.
The checkerboard pattern on the top and bottom ensures safe and space-saving stacking of the boxes. The T Box series is full of other innovative ideas: New aluminum profiles, waterproof rivets, a new patented lock system and new plastic hinges, whisper rollers and extra-sturdy pull-out handles..
A newly developed, heavy-duty aluminum profile offers the possibility of the box still additionally provided with stiffening and insertion profiles as a support for mounting plates. The hinges with an installation angle of 93° have also been specially developed for the T Box. For security against unauthorized access to the transported goods provides a patented train lock with TSA function, also developed by bwh Koffer and well proven..
T Box creates new standards for industrial use
The T Box is available in 3 standard sizes (with or without rollers) from the purchase quantity of 1 piece. From a quantity of 100 pieces you can have the transport box built by us in your very individual desired dimensions.
Not only we are enthusiastic about the T Box, but also the jury of pro-k. Our box promptly won the pro-k award for design and functionality in 2020.
Read all about the award here.
Product features of the T Box
Product features of the T Box
Technical data of the T Box
| Design: | Thermo formed plastic case |
| Case size: | Individual sizes from a quantity of 100 pieces (width, length and height) |
| Material: | HDPE |
| Design options: | Stickers, screen printing, printing, embossing |
| Profiles: | Aluminium |
| Handles & rollers: | Heavy-duty castors, stable pull-out handle, optionally with whispering rolls |
| Locks: | Lockable |
| Temperature resistance: | -30°C to +85°C |
| Tested according to: | MIL STD 810G, ATA Spec. 300 Cat. 1 |
| Awards: | pro K Award 2020 |
| Special features: | Watertight rivets, stackable sizes, adapted to Euro pallet dimensions |
Curious about even more transportation solutions?
On our overview transport solutions you can find more transport cases and transport boxes from our range.
Your individualisation options of the T Box
Benefit from our experience
Made in Germany
Custom made special cases
Personal support
Available standard sizes of the T Box

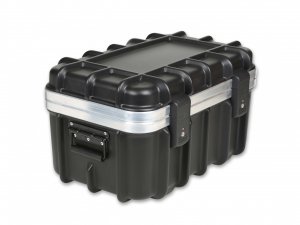

Art. No.: 63010
Inner dimensions: 565 x 335 x 220 + 80 mm
Weight: 4.95 kg

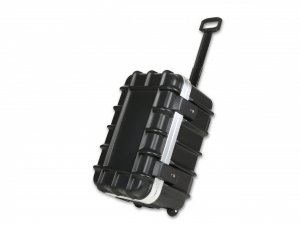

Art. No.: 63000
Inner dimensions: 565 x 335 x 190 + 80 mm
Weight: 6.15 kg

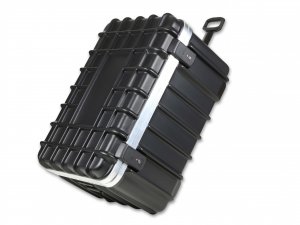

Art. No.: 63100
Inner dimensions: 765 x 535 x 290 + 80 mm
Weight: 9.25 kg
Art. No.: 63200
Inner dimensions: 1145 x 745 x 420 + 80 mm
Weight: 16.25 kg
Our case accessories for the T Box
Advice and contact
Are you looking for a custom case for your goods and products? Then you’ve come to the right place.
Contact us without obligation to get advice from our experts. We will work with you to find the optimum solution for your specific requirements.
You can reach us on the following telephone number: +49 (0) 5459 9339-0
